SX-ACM-600-305
| Add： | No.69 Hailan Street, Yingkou Area of China (Liaoning) Pilot Free Trade Zone |
|---|---|
| Tel： | +86-417-2604444 |
| Mobile/Whatsapp/Wechat： | +86-13941746206 |
| Email： | rebecca@yksanxing.com |
|
产品介绍

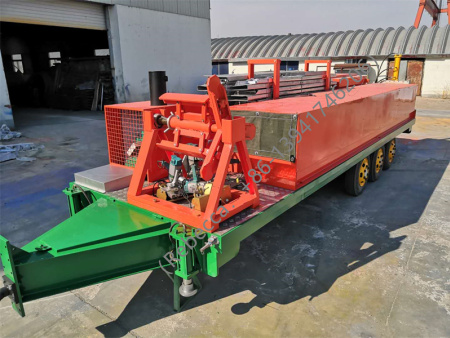

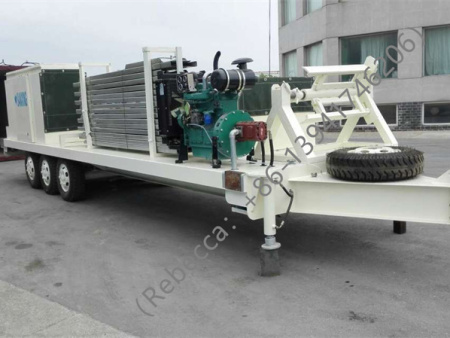

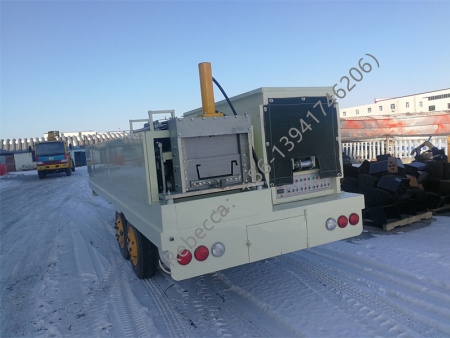

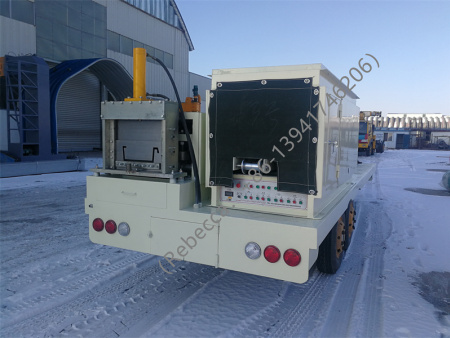

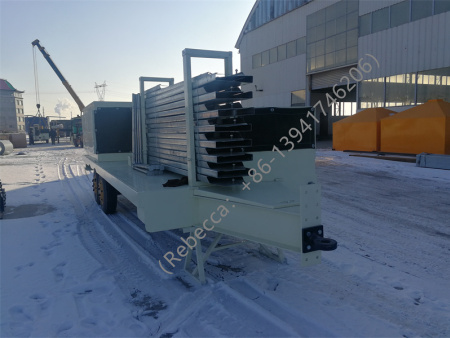

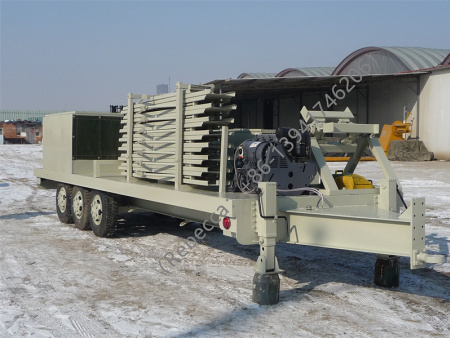

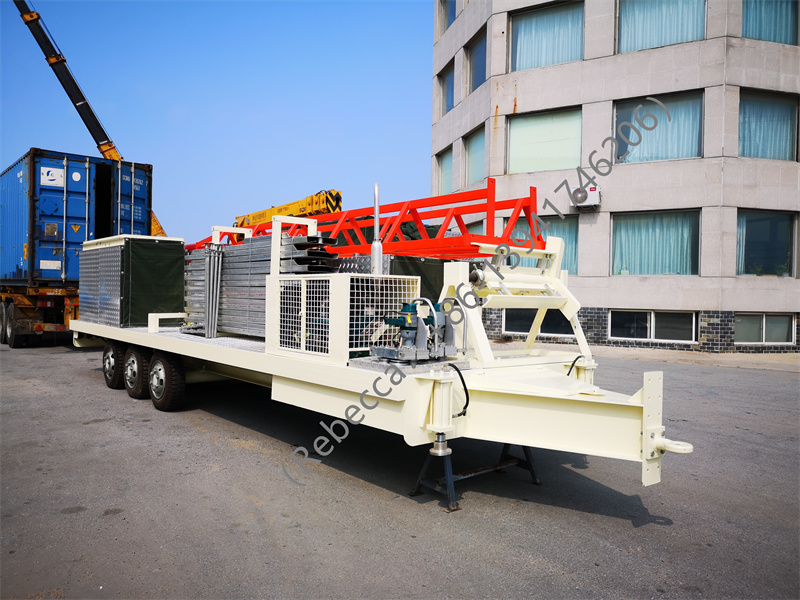

ACM No-Girder Arch Roof Forming Machine SX-ACM-600-305
Feeding width: 600 mm
Effective width: 305 mm
Usage Rate: 51%
Applicable coil thickness: 0.6-1.5mm
Applicable span: ≤ 26 m
SX-ACM-600-305
常规型号 Regular Models
主要型号
Main Type
进板宽度
Feeding Width
出板宽度
Effective Width
成型槽深
Groove Depth
用板厚度
Thickness
适用跨度
Proper Span
板材利用率
Usage Rate
SX-300-178
300mm
178mm
77.5mm
0.3-0.6mm
≤6m
59%
SX-500-205
500mm
205mm
110mm
0.6-1.5mm
≤26m
41%
SX-600-305
600mm
305mm
109mm
0.6-1.5mm
≤26m
51%
SX-625-330
625mm
330mm
108mm
0.6-1.5mm
≤26m
53%
SX-914-400
914mm
400mm
210mm
0.8-1.5mm
≤40m
43.8%
SX-914-610
914mm
610mm
203mm
0.8-1.5mm
≤36m
66.7%
SX-914-650
914mm
650mm
181mm
0.8-1.5mm
≤25m
71.1%
SX-914-700
914mm
700mm
123mm
0.8-1.5mm
≤22m
76.6%
SX-914-750
914mm
750mm
86mm
0.8-1.5mm
≤14m
82%
SX-1000-400
1000mm
400mm
253mm
0.8-1.5mm
≤40m
40%
SX-1000-550
1000mm
550mm
187mm
0.8-1.5mm
≤36m
55%
SX-1000-610
1000mm
610mm
243mm
0.8-1.5mm
≤38m
61%
SX-1000-630
1000mm
630mm
225mm
0.8-1.5mm
≤38m
63%
SX-1000-680
1000mm
680mm
223mm
0.8-1.5mm
≤30m
68%
SX-1000-700
1000mm
700mm
175mm
0.8-1.5mm
≤28m
70%
SX-1000-750
1000mm
750mm
138mm
0.8-1.5mm
≤24m
75%
SX-1000-800
1000mm
800mm
114mm
0.8-1.5mm
≤14m
80%
SX-1200-800
1200mm
800mm
289mm
0.8-1.5mm
≤42m
67%
SX-1220-800
1220mm
800mm
300mm
0.8-1.5mm
≤42m
65.5%
SX-1250-500
1250mm
500mm
295mm
0.8-1.5mm
≤45m
40%
SX-1250-800
1250mm
800mm
320mm
0.8-1.5mm
≤42m
64%
