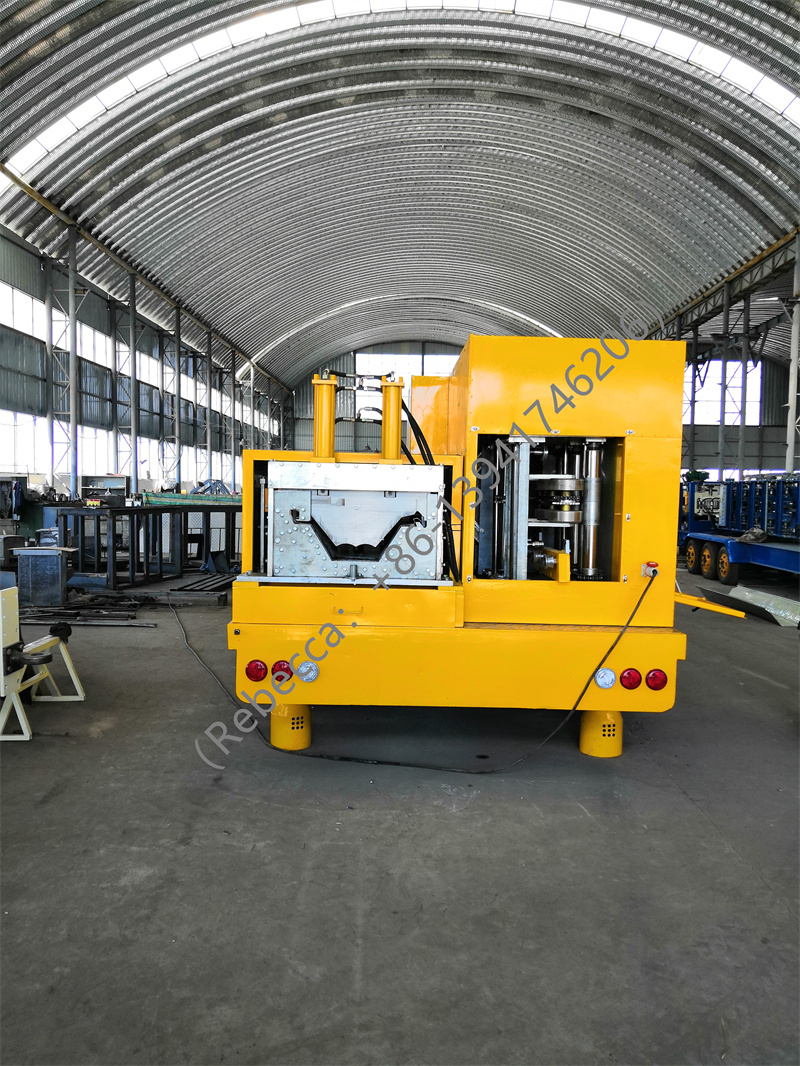

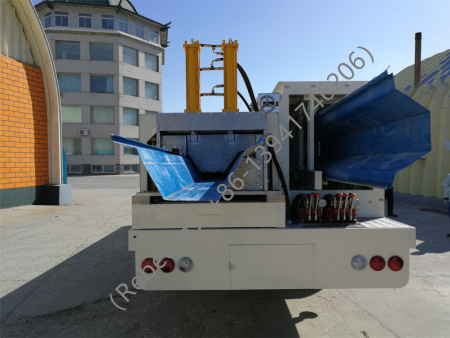

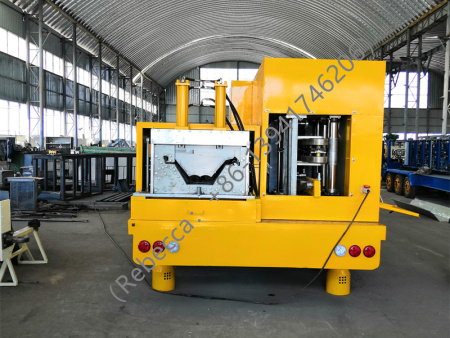

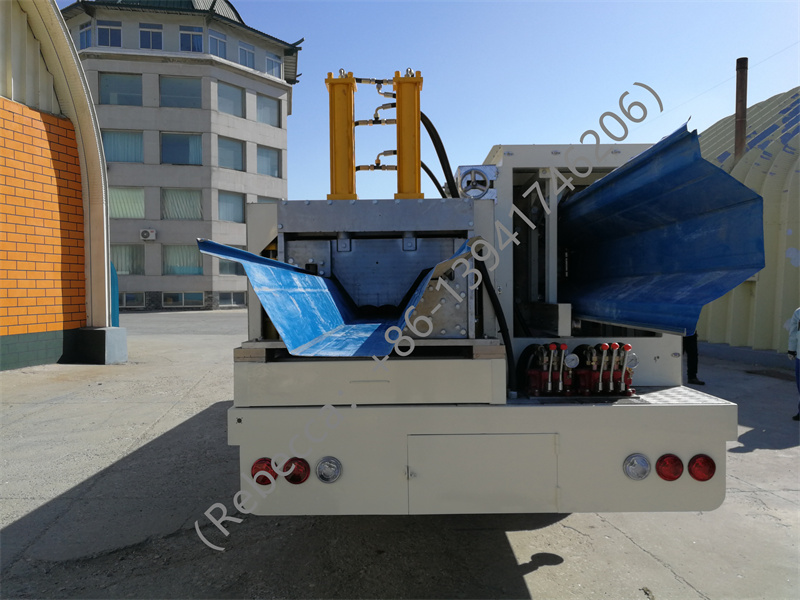

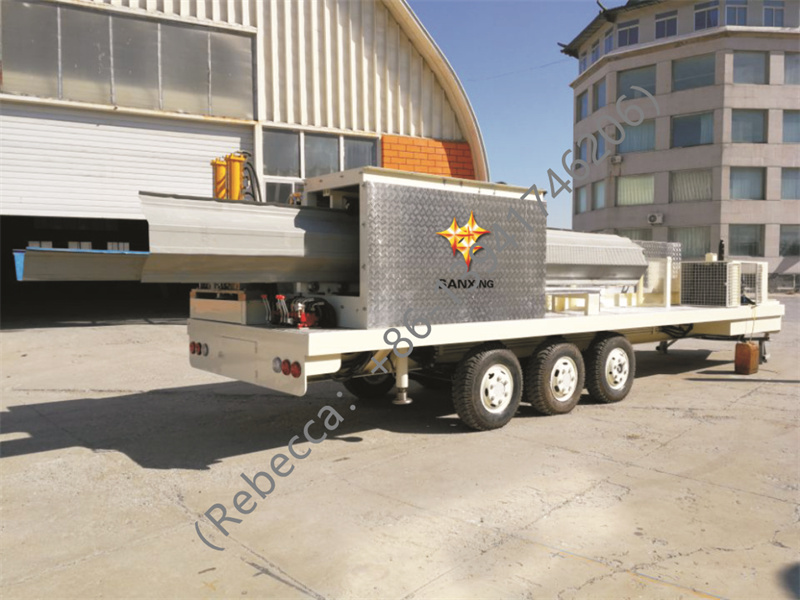

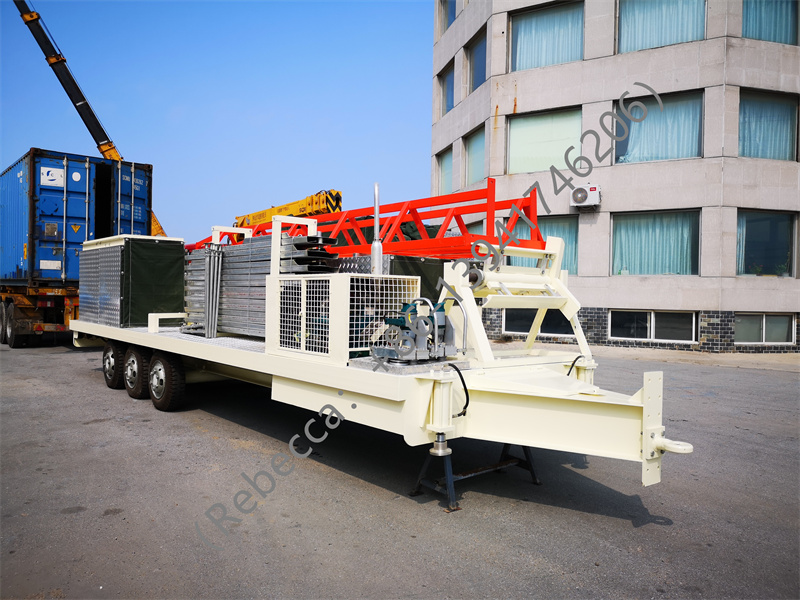

ACM No-Girder Arch Roof Forming Machine

Add：	No.69 Hailan Street, Yingkou Area of China (Liaoning) Pilot Free Trade Zone
Tel：	+86-417-2604444
Mobile/Whatsapp/Wechat：	+86-13941746206
Email：	rebecca@yksanxing.com

Next： SX-ACM-1250-800

Keywords： ACM No-Girder Arch Roof Forming

产品介绍

ACM arch plate equipment is our company since the beginning of the production of equipment, has been 28 years, is our company's star products. The maximum span of the project can reach 45 meters, far more than similar products in the United States. Fast construction, low cost, beautiful shape and no maintenance. It is suitable for many kinds of buildings, such as hangar, storage storehouse, sports stadium, market, factory building, villa, parking lot and so on.

Characteristics of Sanxing Arch Forming Unit

The rollers are all made of high quality structural steel, refined and forged, and the surface is plated with hard chromium, high hardness and long life of the roll.

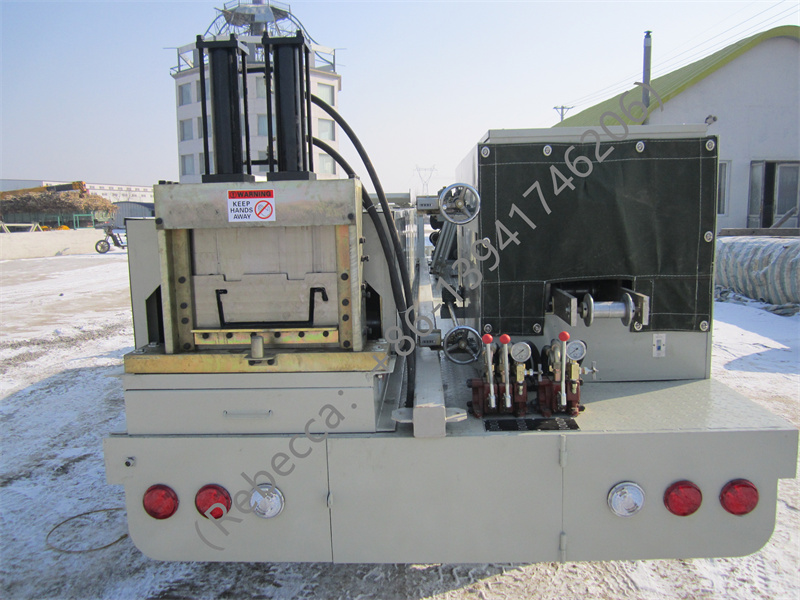

The press section is equipped with automatic transmission color steel plate power device, can be pressed 0.5~1.5 mm thick color steel plate, when pressing without frequent adjustment of roll pressure gap due to the change of sheet thickness, to ensure the normal production of color plate without scratching film, like "point-and-shoot camera ", simple operation, and the quality of finished products are guaranteed.

The effective length is measured by two kinds of instruments: electronic or mechanical.

The bending adjustment of arch plate adopts power handwheel and counter, which is easy to operate and ensures the accuracy of quality and size.

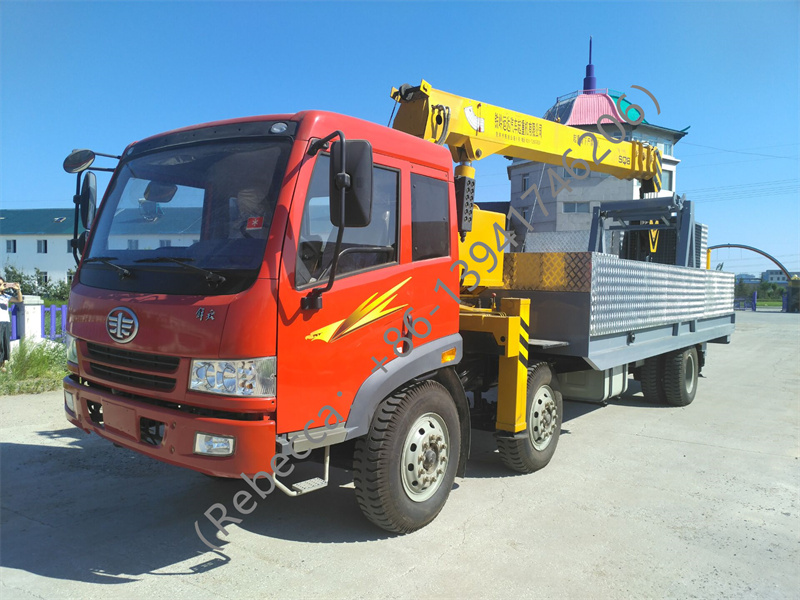

The spreader is light (30KG for American spreader and 2KG for our company), it is easy to load and unload, and the hoisting speed is fast.

The arch plate has the characteristics of high wave peak, high strength, no screw shrink edge bite installation, safe and reliable lap installation, strong waterproof performance, and high degree of automation, low project cost, especially suitable for site production and hoisting, thus reducing the cost. The products are widely used in large and medium-sized industrial buildings with large span, such as workshop, warehouse, locomotive depot, hangar, stadium, exhibition hall, cinema and so on.

Because we also contract large steel structure projects at home and abroad, every time we use our own production of equipment construction, so in the use of equipment and engineering design, construction, we can provide a full set of technical support, and can help customers with one construction.

常规型号 Regular Models

主要型号 Main Type	进板宽度 Feeding Width	出板宽度 Effective Width	成型槽深 Groove Depth	用板厚度 Thickness	适用跨度 Proper Span	板材利用率 Usage Rate
SX-300-178	300mm	178mm	77.5mm	0.3-0.6mm	≤6m	59%
SX-500-205	500mm	205mm	110mm	0.6-1.5mm	≤26m	41%
SX-600-305	600mm	305mm	109mm	0.6-1.5mm	≤26m	51%
SX-625-330	625mm	330mm	108mm	0.6-1.5mm	≤26m	53%
SX-914-400	914mm	400mm	210mm	0.8-1.5mm	≤40m	43.8%
SX-914-610	914mm	610mm	203mm	0.8-1.5mm	≤36m	66.7%
SX-914-650	914mm	650mm	181mm	0.8-1.5mm	≤25m	71.1%
SX-914-700	914mm	700mm	123mm	0.8-1.5mm	≤22m	76.6%
SX-914-750	914mm	750mm	86mm	0.8-1.5mm	≤14m	82%
SX-1000-400	1000mm	400mm	253mm	0.8-1.5mm	≤40m	40%
SX-1000-550	1000mm	550mm	187mm	0.8-1.5mm	≤36m	55%
SX-1000-610	1000mm	610mm	243mm	0.8-1.5mm	≤38m	61%
SX-1000-630	1000mm	630mm	225mm	0.8-1.5mm	≤38m	63%
SX-1000-680	1000mm	680mm	223mm	0.8-1.5mm	≤30m	68%
SX-1000-700	1000mm	700mm	175mm	0.8-1.5mm	≤28m	70%
SX-1000-750	1000mm	750mm	138mm	0.8-1.5mm	≤24m	75%
SX-1000-800	1000mm	800mm	114mm	0.8-1.5mm	≤14m	80%
SX-1200-800	1200mm	800mm	289mm	0.8-1.5mm	≤42m	67%
SX-1220-800	1220mm	800mm	300mm	0.8-1.5mm	≤42m	65.5%
SX-1250-500	1250mm	500mm	295mm	0.8-1.5mm	≤45m	40%
SX-1250-800	1250mm	800mm	320mm	0.8-1.5mm	≤42m	64%
