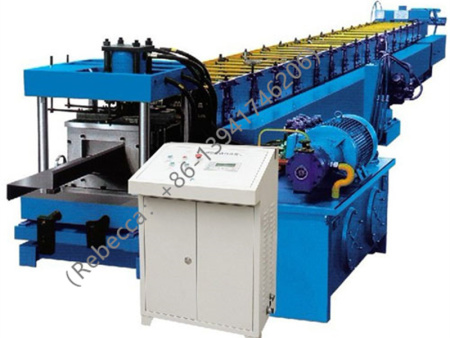

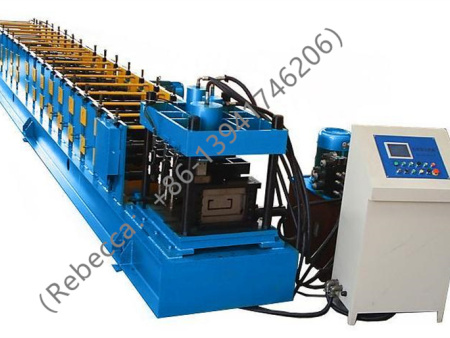

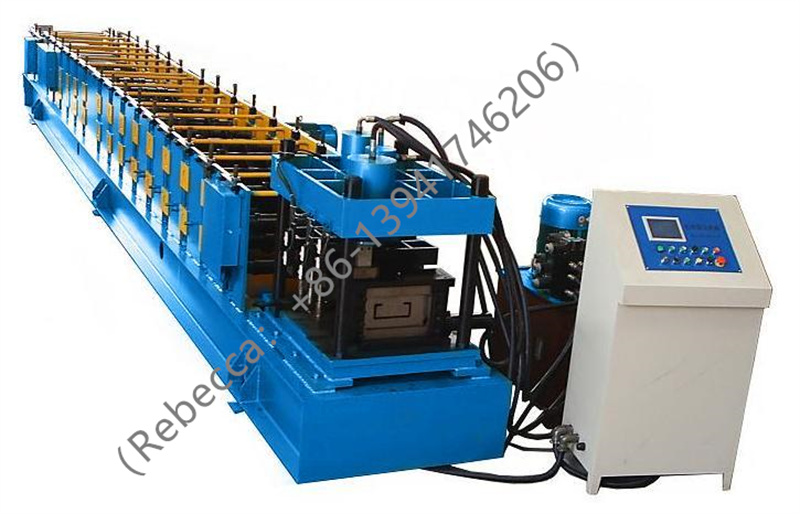

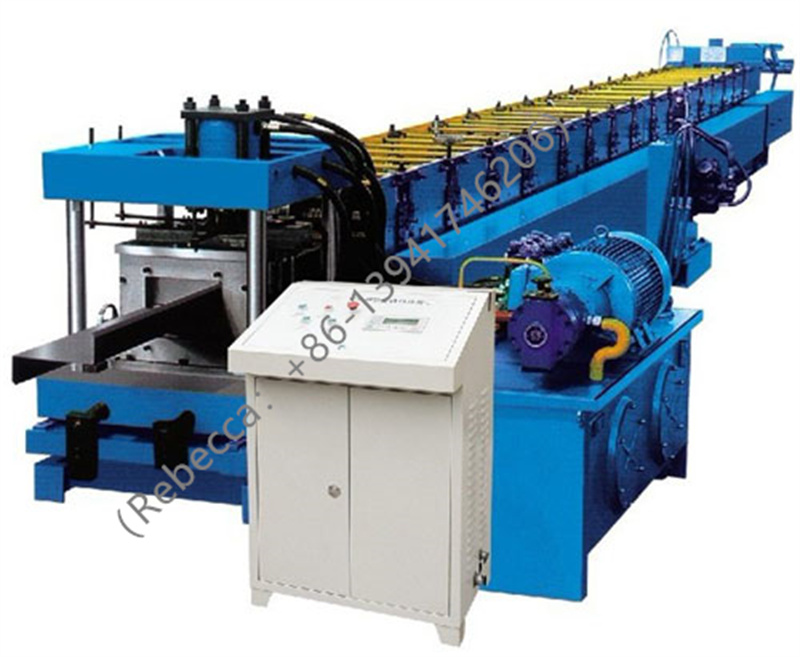

U/C/Z Shape Steel Purlin Machine
| Add： | No.69 Hailan Street, Yingkou Area of China (Liaoning) Pilot Free Trade Zone |
|---|---|
| Tel： | +86-417-2604444 |
| Mobile/Whatsapp/Wechat： | +86-13941746206 |
| Email： | rebecca@yksanxing.com |
|
产品介绍

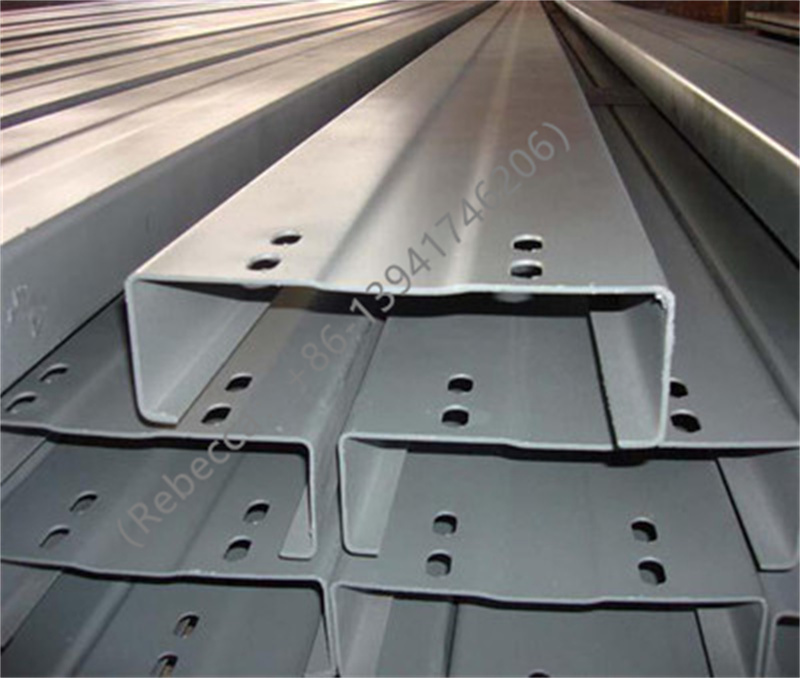

The U,C,Z shaped steel purlins have excellent anti-bending property and it's easy to install. They are widely used as the supporter of roof and wall.

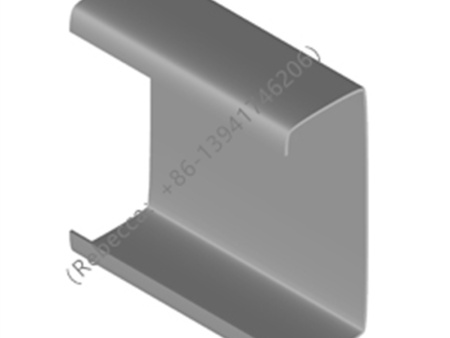

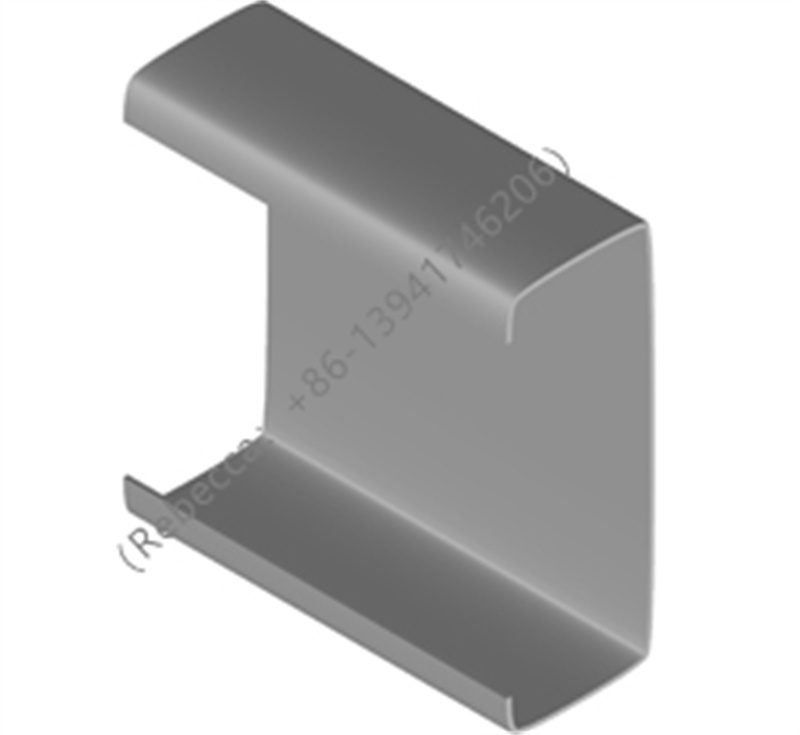

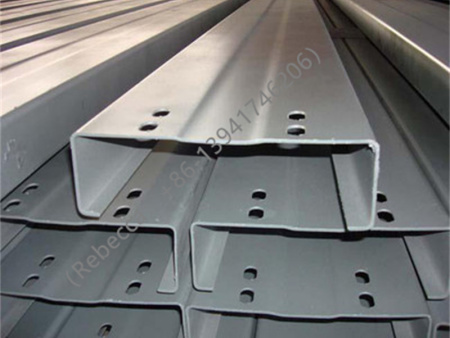

C Steel Purlin Dimension Table
C型钢 C-Section Sheet
型号
Model
断面尺寸Section Size(mm)
Punching
mm
h
h
b
c
t
C80
80
40
15
1.5-3.0
Without
C100
100
50
20
1.5-3.0
40
C120
120
50
20
1.5-3.0
adjustable
C140
140
50
20
1.5-3.0
adjustable
C160
160
60
20
1.5-3.0
adjustable
C180
180
60
20
1.5-3.0
adjustable
C200
200
60
20
1.5-3.0
adjustable
C220
220
70
20
1.5-3.0
adjustable
C250
250
70
20
1.5-3.0
adjustable
C300
300
80
20
1.5-3.0
adjustable
The dimension can be chosen by the customer(middle holes are available)

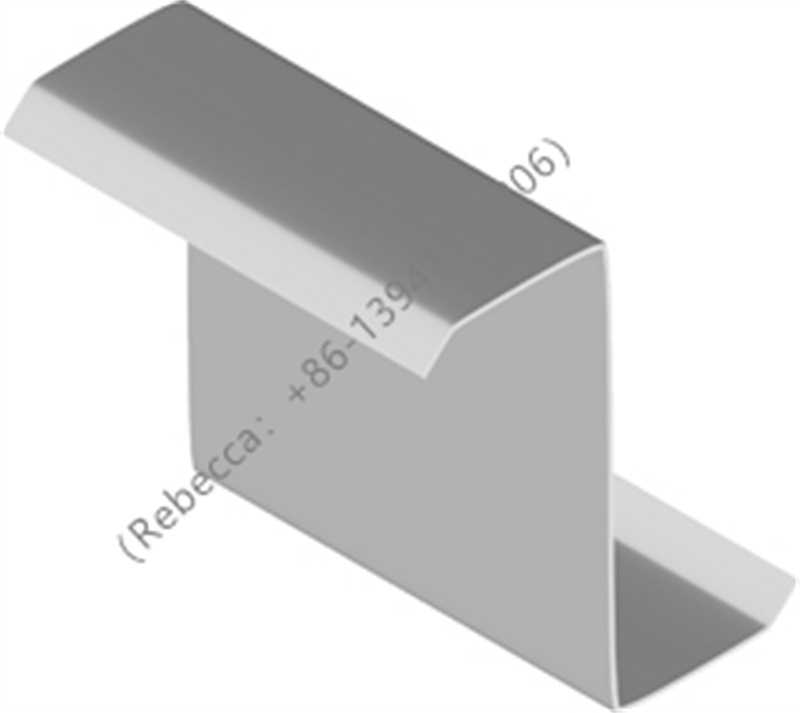

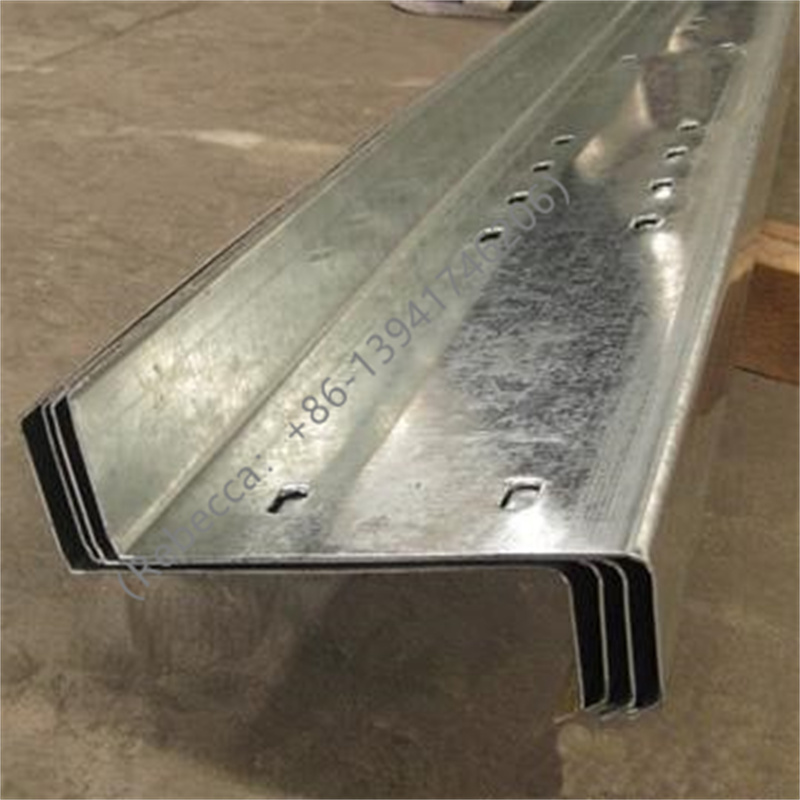

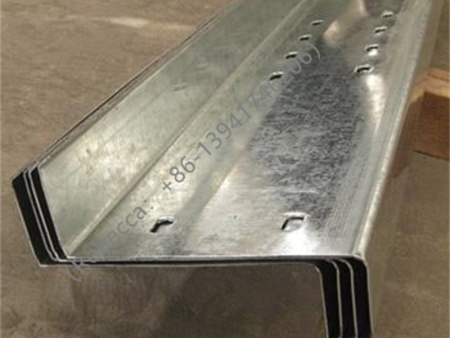

Z Steel Purlin Dimension Table
Z型钢 Z-Section Sheet
型号
Model
断面尺寸Section Size(mm)
Punching
mm
h
h
b
c
t
Z100
100
55
20
1.5-3.0
40
Z120
120
55
20
1.5-3.0
adjustable
Z140
140
55
20
1.5-3.0
adjustable
Z150
150
67
20
1.5-3.0
adjustable
Z160
160
67
20
1.5-3.0
adjustable
Z180
180
67
20
1.5-3.0
adjustable
Z200
200
67
20
1.5-3.0
adjustable
Z220
250
78
20
1.5-3.0
adjustable
Z250
280
78
20
1.5-3.0
adjustable
Z300
300
78
20
1.5-3.0
adjustable
The dimension can be chosen by the customer(middle holes are available)

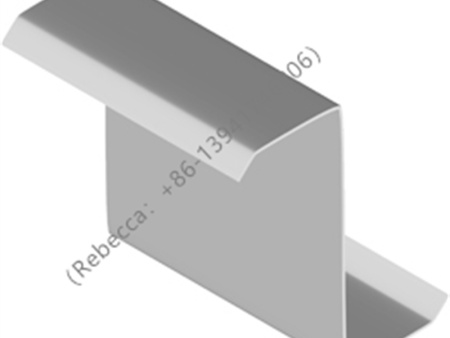

版型图C Z
