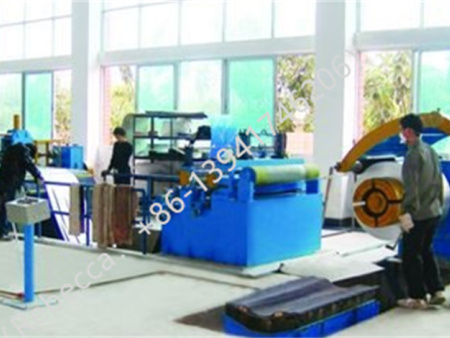

Automatic Slitting Line
| Add： | No.69 Hailan Street, Yingkou Area of China (Liaoning) Pilot Free Trade Zone |
|---|---|
| Tel： | +86-417-2604444 |
| Mobile/Whatsapp/Wechat： | +86-13941746206 |
| Email： | rebecca@yksanxing.com |
|
产品介绍

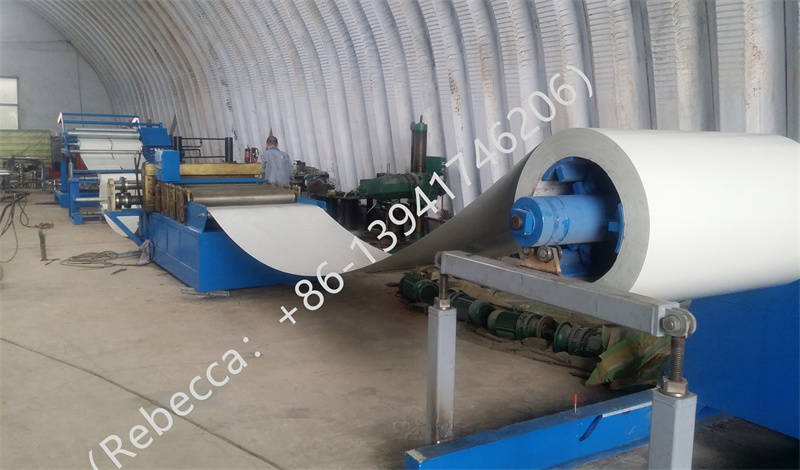

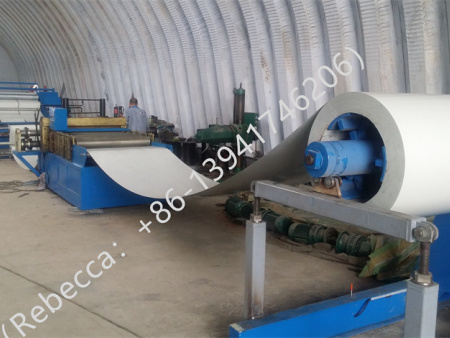

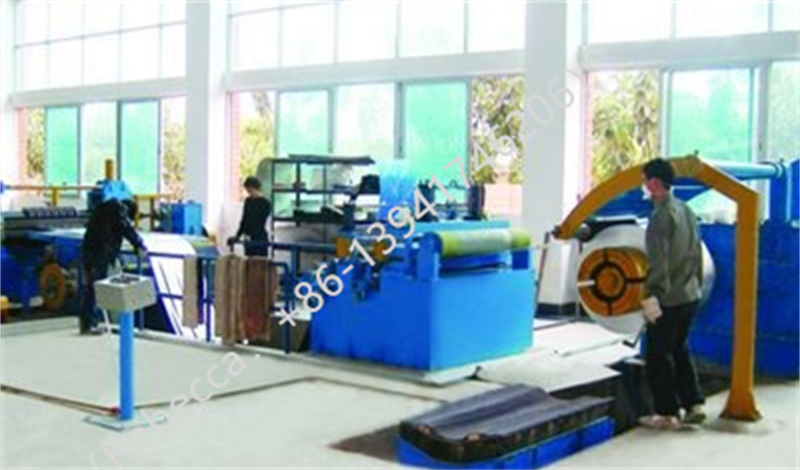

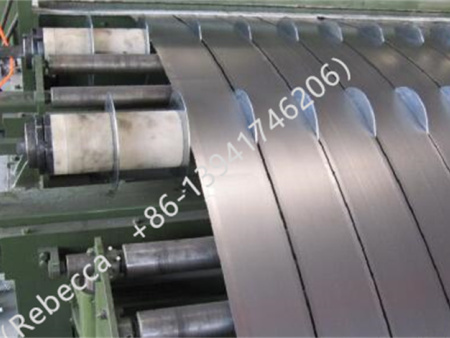

Slitting machine is used to cut silicon steel sheet, aluminum coil, galvanized coil, stainless steel, common carbon steel and other coil sheet into several small strips along the length direction.
Components of slitting machine
1. hydraulic feeding trolley
2. hydraulic internal decoiler
3. Transition Bridge

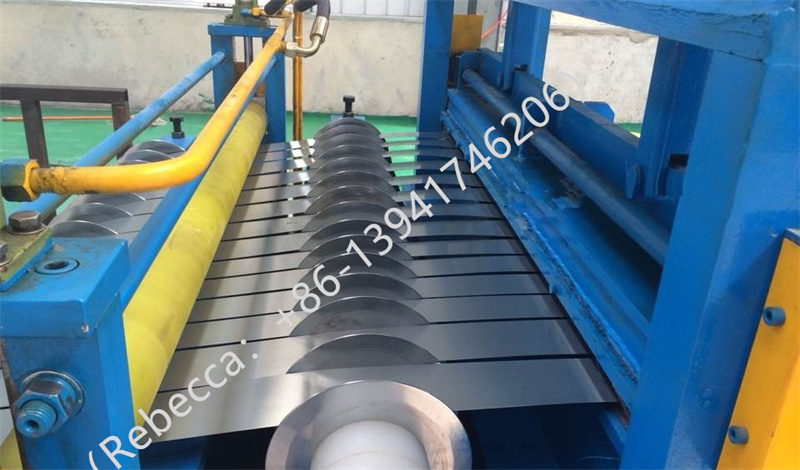

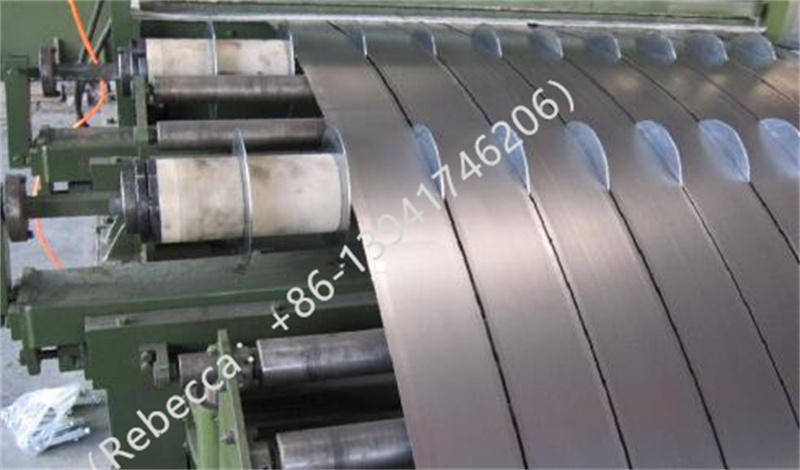

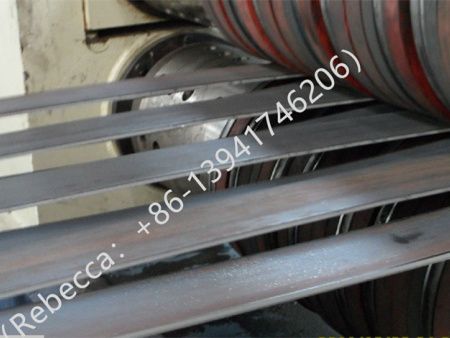

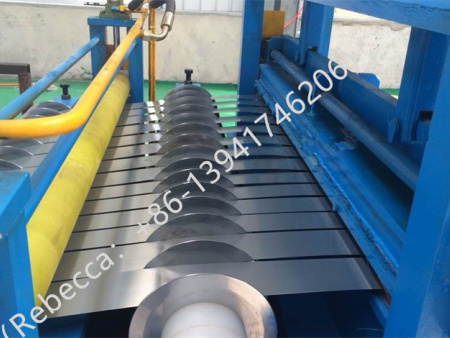

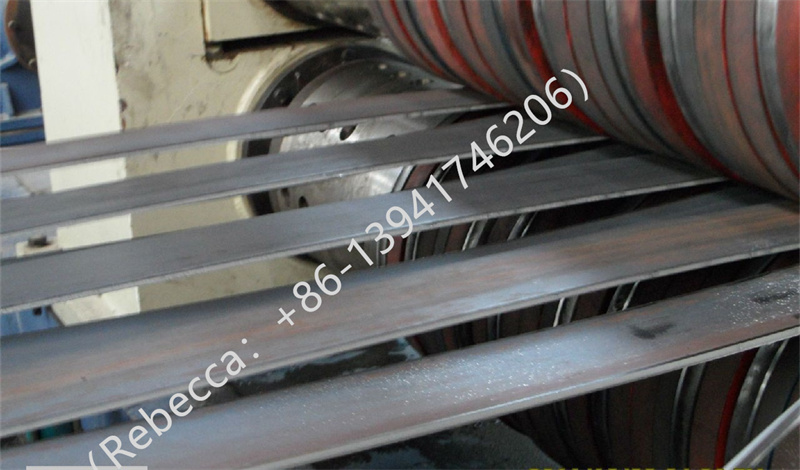

4. longitudinal shearing machine
5. hemming machine
6. Transition Bridge
7. hydraulic surge stations
8. hydraulic clamp rewinder
9. discharge hydraulic trolley
10. Hydraulic systems
11. Electrical control systems
Technical properties and parameters of longitudinal shear strip machine
Strip material: colour coated sheet
Material thickness: 0.2-1.5 mm
Material width: 1000 mm
Weight of material: 5 T max
Speed: 0-60m/min
Number of bars: 12strip /1 mm thick; 20strip / 0.5 mm thick;
Unilateral non-straightness: ≤0.05 mm/m
Width error: ±0.03 mm
Shear burrs: thickness 1.0 mm≤0.03 mm (Max)
Production area: about 20 m× wide 7.5 m× high 2 m
