Screw-joint No-Girder Large Span Roof Making Machine
| Add： | No.69 Hailan Street, Yingkou Area of China (Liaoning) Pilot Free Trade Zone |
|---|---|
| Tel： | +86-417-2604444 |
| Mobile/Whatsapp/Wechat： | +86-13941746206 |
| Email： | rebecca@yksanxing.com |
|
产品介绍

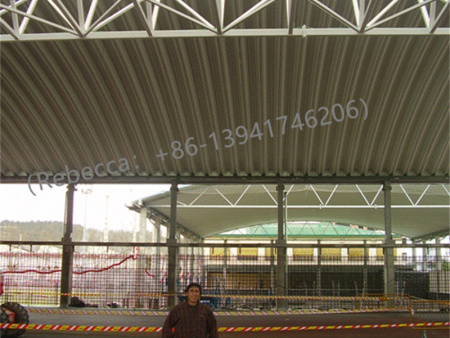

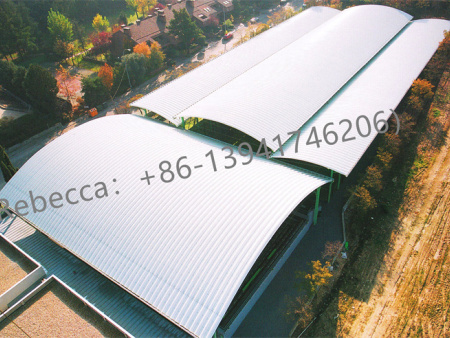

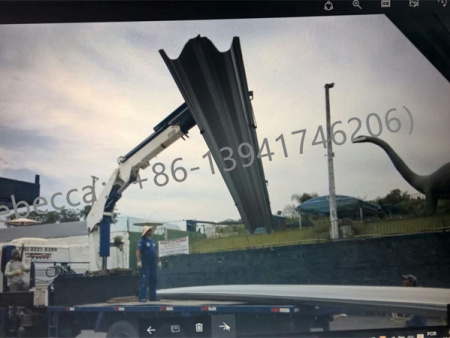

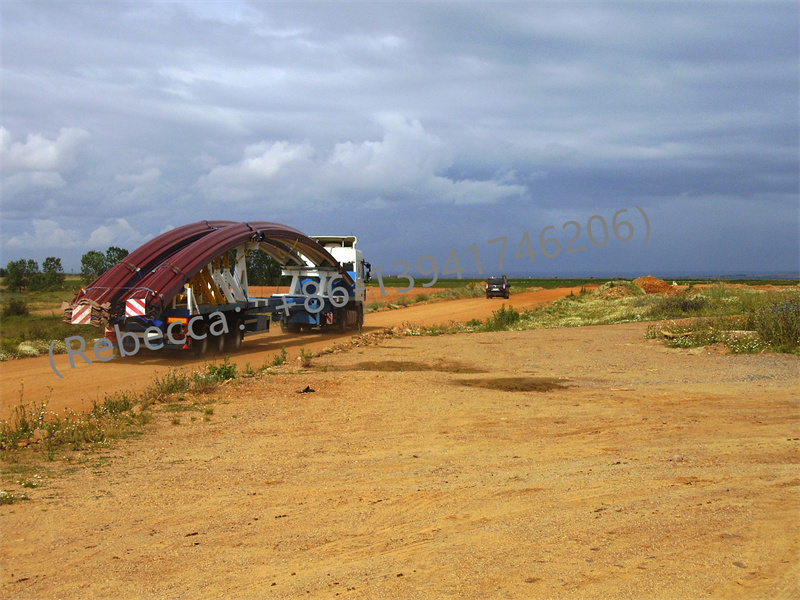

Steel plate thickness up to 2.0 mm, suitable for the span of 40 meters within the building, plate stability is good, easy to transport steel plate, simple engineering construction.
Thickness(mm)
Weight(kg/m)
Flexural Modulus(cm3)
Maximum Span(m)
Curvature Radius(m)
0.80
10.00
61
18
24.00
1.00
12.40
78
20
26.50
1.25
14.20
98
25
33.00
1.5
17.00
119
30
40.00
版型图SX-830
