No-Girder Nut&Bolt Multiple Shape Building Producing
| Add： | No.69 Hailan Street, Yingkou Area of China (Liaoning) Pilot Free Trade Zone |
|---|---|
| Tel： | +86-417-2604444 |
| Mobile/Whatsapp/Wechat： | +86-13941746206 |
| Email： | rebecca@yksanxing.com |
|
产品介绍

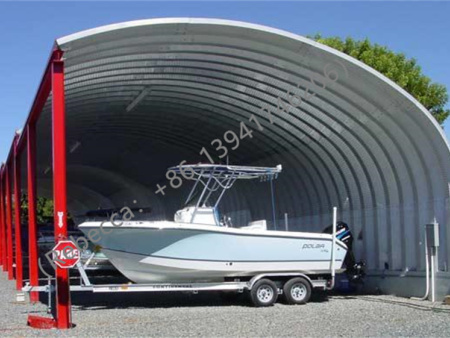

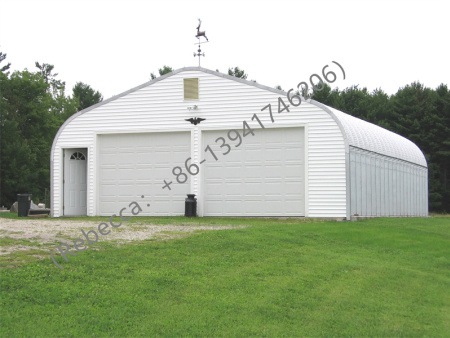

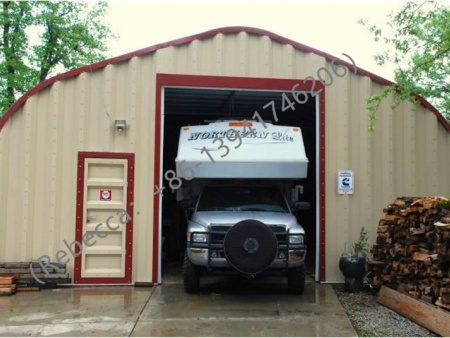

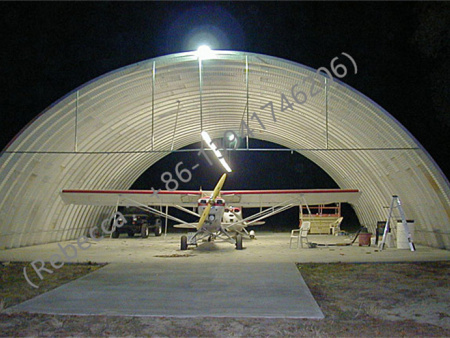

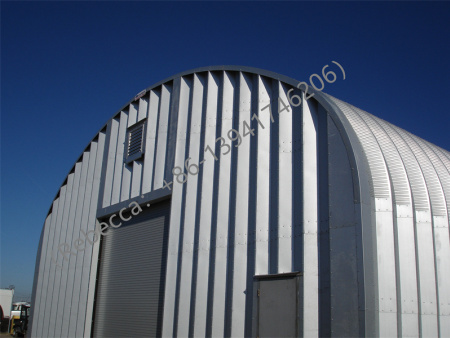

The machine works in the workshop. The building is easy to be installed and relocated. The technology makes possible manufacturing and construction of hall of width from 5 to 48 meters in 21 standard types.
常规型号 Regular Models
型号
Type
进板宽度
Coil Width
出板宽度
Effective Width
用板厚度
Thickness
适用跨度
Span
1000mm
680mm
0.8-1.5mm
≤38/25m
SX-600-2.0
1000mm
650mm
0.8-1.5mm
≤42/30m
1000mm
600mm
0.8-1.5mm
≤48/35m
This production line includes automatic decoiler, punching machine, speed regulation, straight panel forming machine, cutting system, and bending machine. A production line can produce four types of models: SXD-1000-750, SXD-1000-680, SXD-1000-650, and SXD-1000-600. The equipment adopts an upgraded CNC system, with intelligent and fast operation, high production efficiency, and truly realizes the production of buildings with different spans, shapes, and sizes on a single production line. Can produce buildings with a span of 3-48 meters, with eight basic shapes: A, P, H, M, R, S, and O. The raw materials can be galvanized sheet, color coated sheet, aluminum zinc plated sheet, etc. The conventional thickness of the steel plate is 0.8-2.0mm for construction. If there are special requirements, steel plates with a thickness of 3.2mm can also be made, and stainless steel plates can also be specially made.
