UBM vertical cold bending roller press forming machine

Add：	No.69 Hailan Street, Yingkou Area of China (Liaoning) Pilot Free Trade Zone
Tel：	+86-417-2604444
Mobile/Whatsapp/Wechat：	+86-13941746206
Email：	rebecca@yksanxing.com

Next： SX-UBM-1250-500

Keywords： UBM vertical cold bending roller

Product Introduction

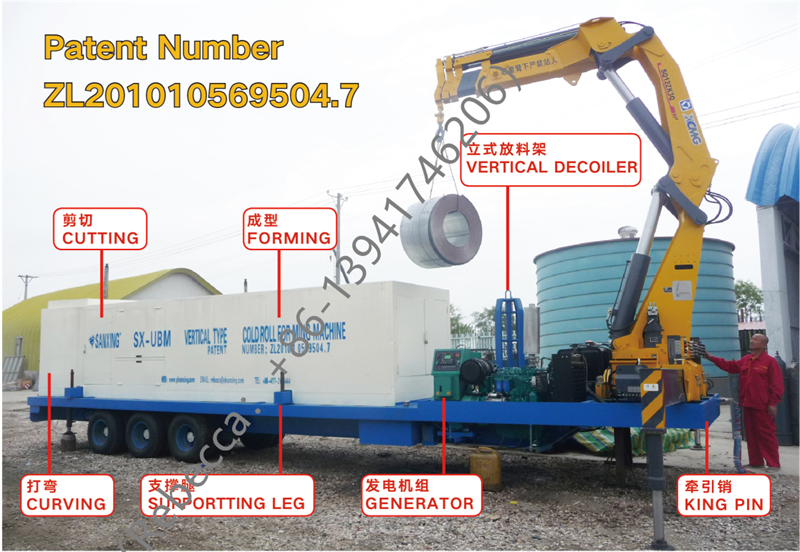

Patent of Invention Number: ZL 201010569504.7

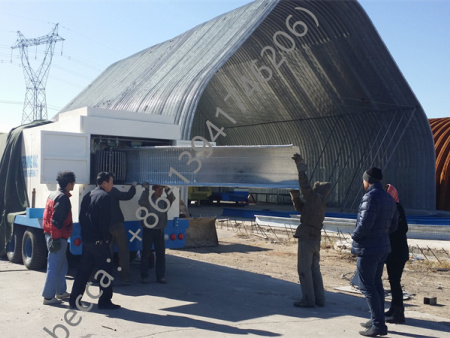

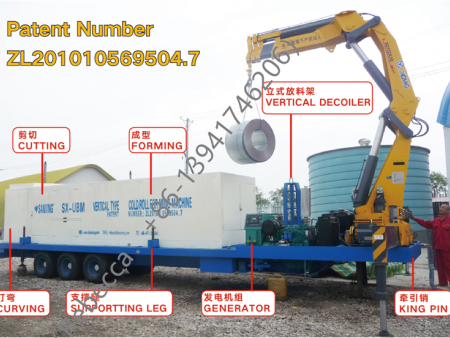

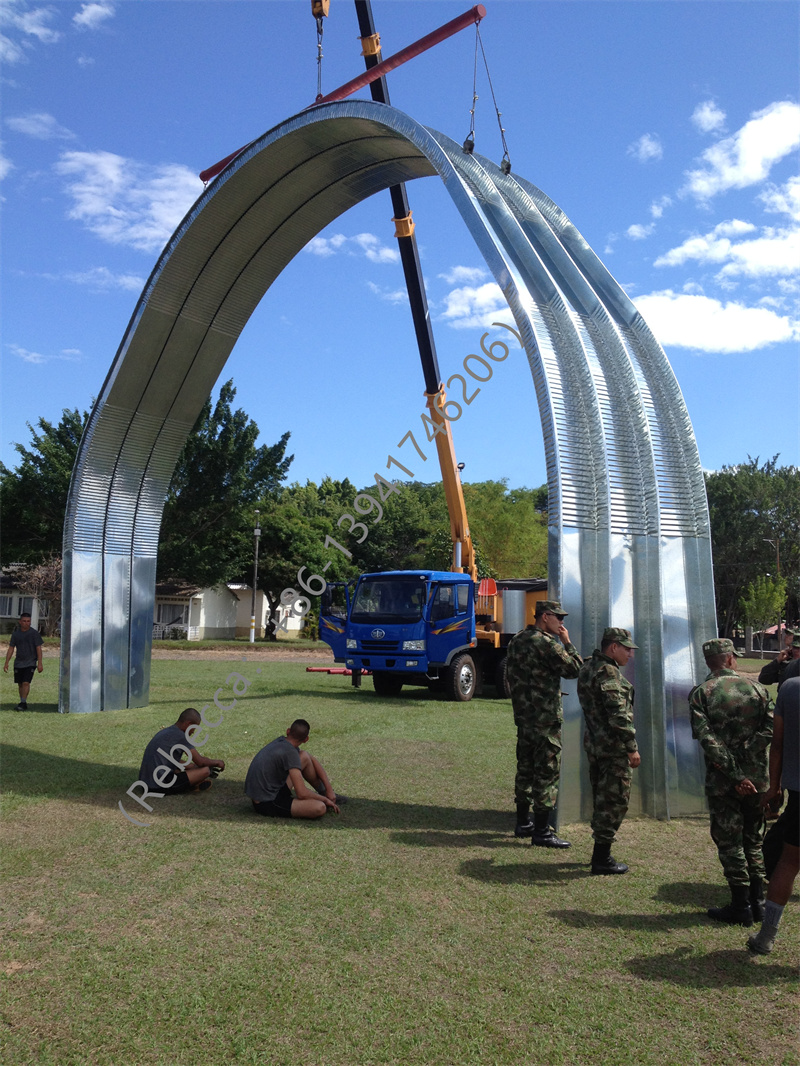

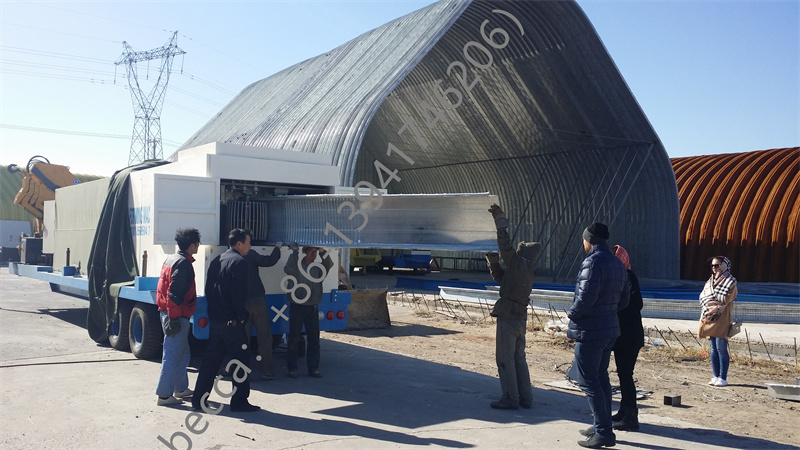

UBM cold bending forming machine is a separate trailer-type mobile factory for the production of steel structure buildings directly in the construction site. The building material is steel coil. The roller press forming machine was towed to the construction site and installed by a small team of personnel close to the construction position. A set of machines works throughout the production line for forming, bending and cutting. The arc panel has traditional gable shape (straight side wall and slope roof), circular double radius shape (straight side wall and wide arc roof section) or circular arc shape with fixed radius. The finished panel was transported to an assembly area, connected in groups of three pieces, completely using the patented electric seaming machine. The seam connection is waterproof without bolts or other fasteners. After the three boards are assembled, hoist with a crane and then place the panel part on the pre-prepared foundation. Repeat this process until the required building length is reached and the length is not limited. The interior building is the same as any other prefabricated building and can be added with insulation, electricity, plumbing, lighting, ventilators, heating and cooling systems and partitions.

Advantages of UBM architecture

By using UBM vertical cold roller forming machine, a 1000 square meter steel structure building can be built in 24 hours. Using high speed production speed and panel bite ,10-12 people can make and install nearly 100 arched panels in a day.

Low Cost

As the speed increases, the costs of UBM buildings are lower than that of traditional buildings and prefabricated buildings.

Field Manufacturing

The UBM mobile factory is transported directly to the construction site, the building is made entirely on site. There is no additional costs to transport building components from the factory to the site.

Move and access to remote areas

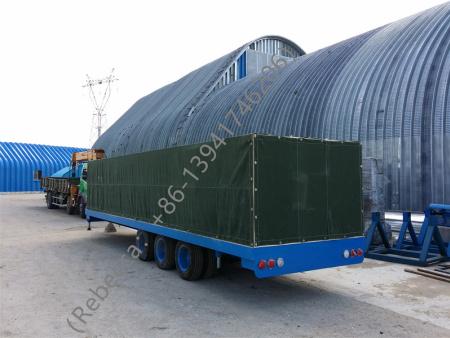

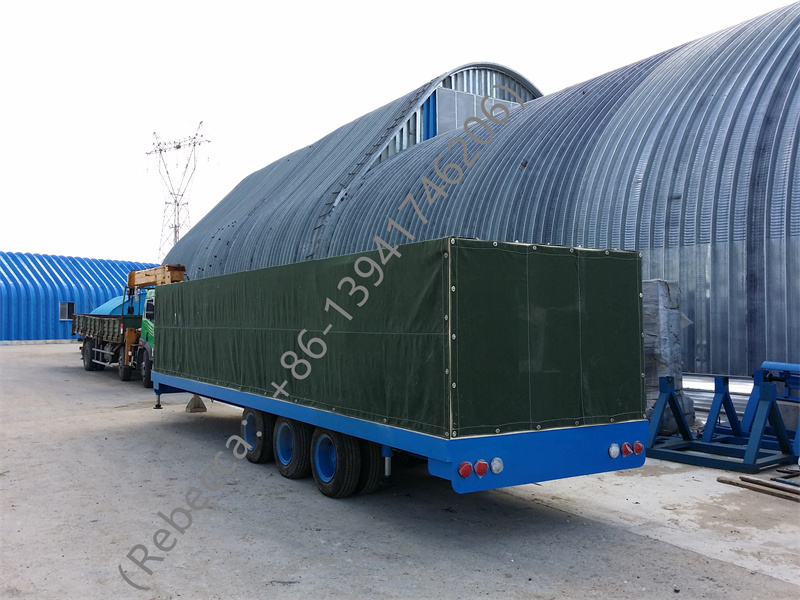

UBM vertical cold roller molding machine installed on the trailer is easy to be towed to remote places by an ordinary vehicles and can be used immediately after arrival.

No structural clamps, beams or trusses are required

UBM arch is designed to be fully self-supporting and does not require a support structure like a standard steel frame building.

Saving manpower

A team of about 10 to 15 trained people can build a 1000 square meter building in a day. Users can build their beamless arch buildings with steel or aluminum, both of which have a series of color pre-coatings. We also stored most of the steel coils and immediately transported them to the construction site with the unit.

Upgrading of UBM equipment of sanxing

First generation ——Two-step production:

Step 1: Advance plate -> forming -> shear

Step 2: Feeding ->bending

Second generation：

This is a new production process with one step for straight and curved plates. Compared with the first generation, the cost of labor is reduced by 30%, and the speed of work is increased by more than 20%

Process：Feeding -> forming --> shearing --> bending

Third generation：

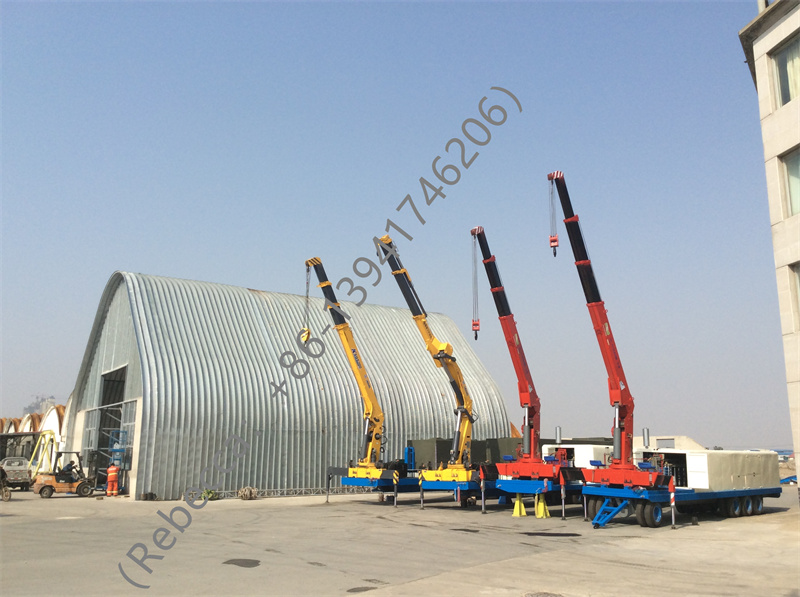

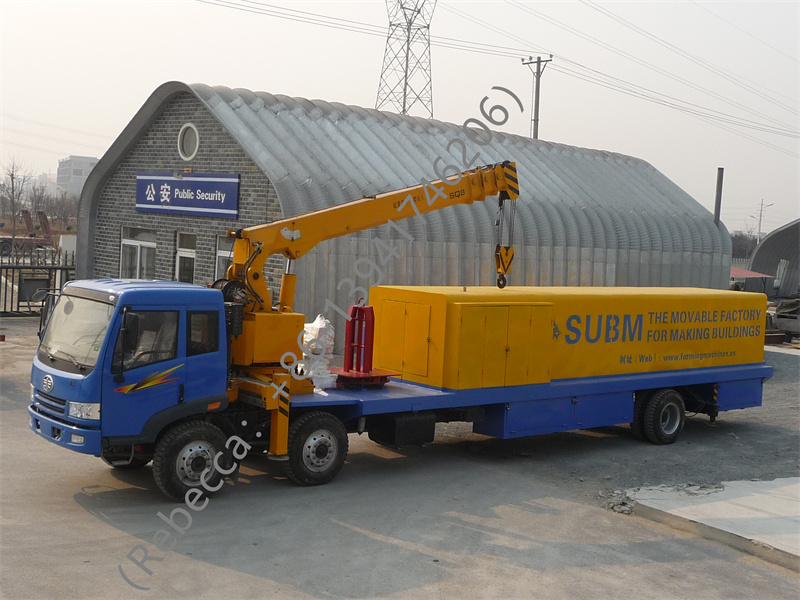

By using diesel vehicle and 8 T crane, the truck can be driven directly to the project site.The required panels can be completed in one step, and there is no need for workers to hold and move the panels.. When the panels are ready, the crane on the machine can easily lift them up and fix them in place. Compared with the first generation, the labor cost is reduced by 80%, and the working speed is increased by more than 70%.

常规型号 Regular Models

主要型号 Main Type	进板宽度 Feeding Width	出板宽度 Effective Width	成型槽深 Groove Depth	用板厚度 Thickness	适用跨度 Proper Span	板材利用率 Usage Rate
SX-600-305	600mm	305mm	109mm	0.6-1.5mm	≤26/18m	51%
SX-625-330	625mm	330mm	108mm	0.6-1.5mm	≤26/18m	53%
SX-914-610	914mm	610mm	203mm	0.8-1.5mm	≤36/20m	67%
SX-1000-400	1000mm	400mm	253mm	0.8-1.5mm	≤40/28m	40%
SX-1000-550	1000mm	550mm	187mm	0.8-1.5mm	≤36/20m	55%
SX-1000-630	1000mm	630mm	225mm	0.8-1.5mm	≤38/22m	63%
SX-1000-680	1000mm	680mm	223mm	0.8-1.5mm	≤30/15m	68%
SX-1250-500	1250mm	500mm	295mm	0.8-1.5mm	≤45/30m	40%
